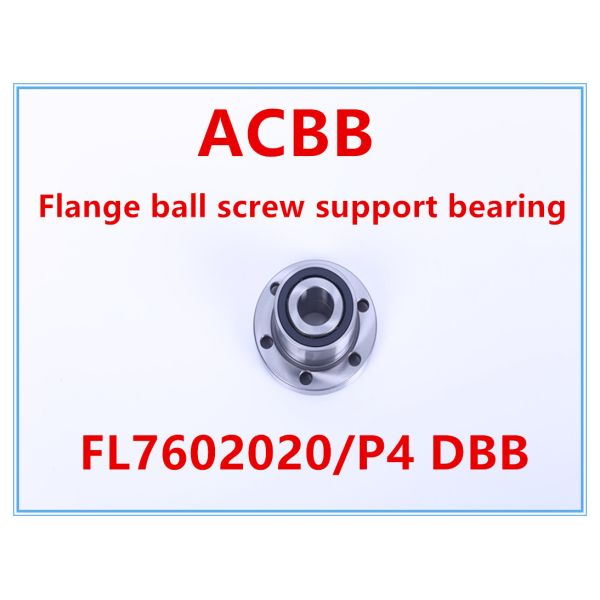

FL7602020/P4 DBB Flange Ball Screw Support Bearing

  • 1
  • 2
  • 3

Brand Name : ACBB

Model Number : FL7602020/P4 DBB

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 30 PCS

Packaging Details : Company brand packaging.

Product name : Flange Ball Screw Support Bearing

Product model : FL760204/P4 DBB

Characteristic : High speed and high rigidity

Rotational speed : 4000RPM-5000RPM

Angle : 60 Degree

Preload : Light preload

Rolling Body : Steel Ball

Holder : Nylon holder

Contact Now

Flange Ball Screw Support Bearing FL7602020/P4 DBB is applied to the machine tool lead screw drive to quickly, efficiently and accurately position a workpiece or machine part. In order to meet these needs, ACB B ultra-precision thrust angular contact ball bearing can be used for the machine tool lead screw drive. Use a 60 degree contact angle. The ball screw support bearing has the characteristics of high rigidity, high precision and large axial load. In order to meet the needs of customers, we have designed ball screw bearing with sealing structure.

Flange ball screw support bearing
Bearing No Dimensions(mm) (KN) (r/min) Limitsd Speed
d D TD Td B da D1 A C Cr Cor
FL7602015 B P4 DBB 15 35 30 32 10 25.2 57 46 5.5 19.2 12.4 5000
FL7602017 B P4 DBB 17 40 32 34 10 25.8 64 52 6 20.2 13.5 5000
FL7602020 B P4 DBB 20 47 36 38 10 31 73 60 7 22.8 15.8 4500
FL7602025 B P4 DBB 25 52 36 38 10 36 82 67 7 25.5 18.8 3600
FL7602030 B P4 DBB 30 62 40 42 10 42.8 92 77 9 32.2 27.5 2800
FL7602035 B P4 DBB 35 72 42 44 10 49.7 102 87 9 43.7 37.5 2500
FL7602040 B P4 DBB 40 80 44 46 12 61 114 97 9 52.5 37.5 2200
FL7603017 B P4 DBB 17 47 36 38 10 28.3 73 60 7 37.5 25.5 4000
FL7603020 B P4 DBB 20 52 36 38 10 32.3 82 67 7 40.8 28.8 3200
FL7603030 B P4 DBB 30 72 42 44 10 49.7 102 87 9 43.7 37.5 2500

FL7602020/P4 DBB Flange Ball Screw Support Bearing
